Plastic Injection Overmolding

Choosing the appropriate materials is fundamental to the success of the overmolding process. The primary and secondary materials must have similar thermal properties and chemical compatibility to ensure a strong bond.

For instance, thermoplastics often bond well with elastomers, but some combinations may require surface treatments to improve adhesion. Additionally, additives and fillers — such as flame retardants, colorants, or strength enhancers — can be incorporated to modify performance characteristics and meet specific application needs.

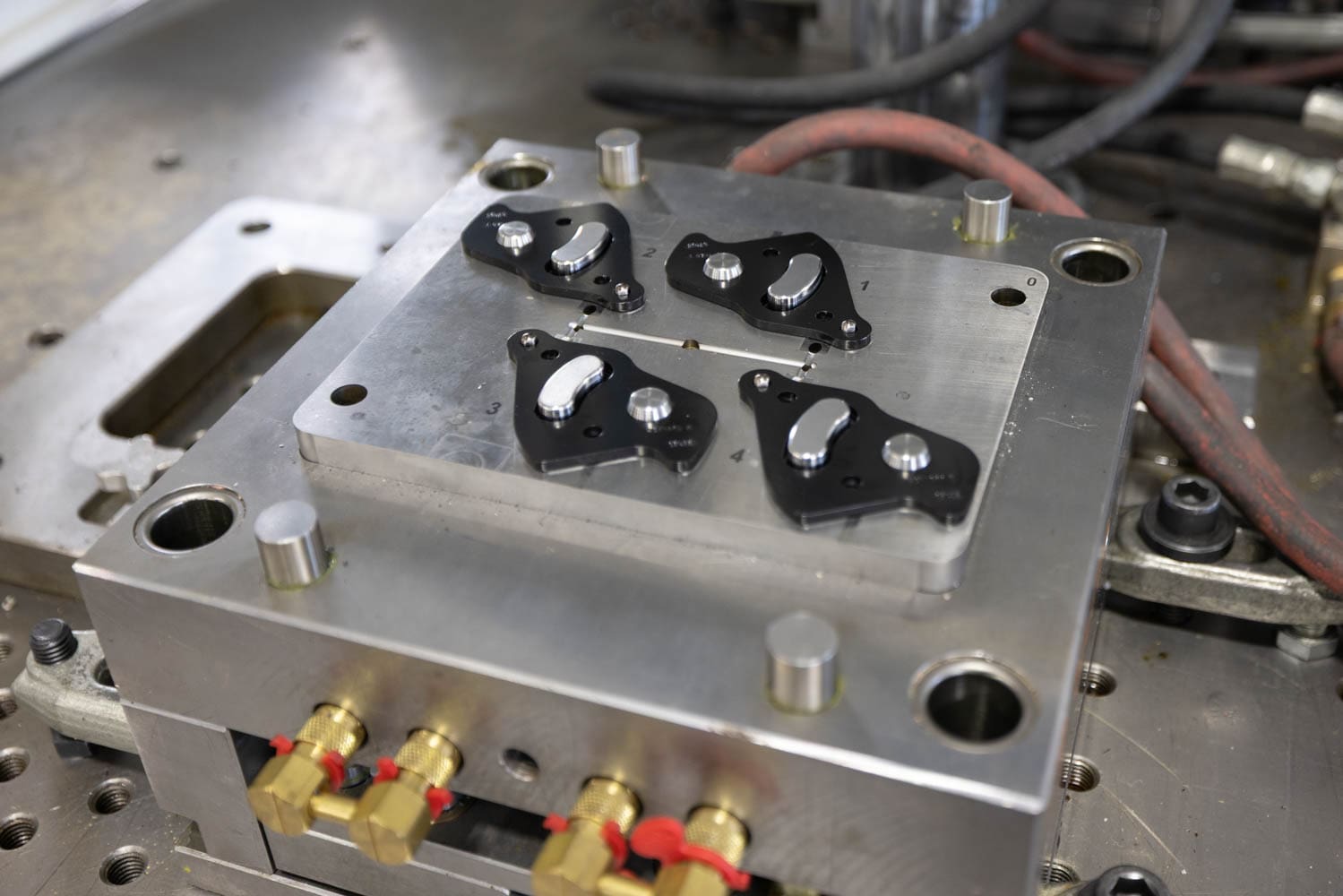

The mold must be engineered to fit the primary and secondary materials accurately. This involves designing the core and cavity to match the part’s geometry and incorporating cooling channels to control temperature and reduce cycle times.

Optimizing process parameters such as injection pressure, temperature, and cycle time is essential for producing consistent, high-quality, overmolded parts. These must be carefully controlled and monitored to prevent defects such as warping, incomplete filling, or material separation.

Proper bonding between the overmold and the substrate is essential for product integrity. Surface preparation is often required to increase the substrate’s surface energy, improving adhesion. Methods such as plasma or corona treatment can enhance surface properties, while mechanical techniques like roughening can also improve bonding. In some cases, chemical bonding agents, such as adhesive primers, may create a more robust interface between dissimilar materials.

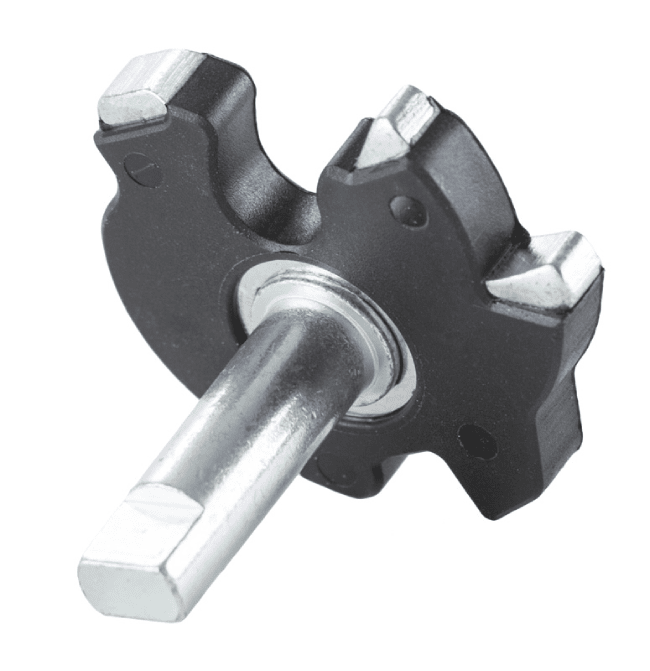

In overmolding applications involving metal or other inserts, precise placement is critical. Inserts must be accurately positioned within the mold cavity to ensure proper encapsulation and alignment. This often requires specialized fixtures or automated systems to maintain precise positioning during molding. Measures must also be taken to protect inserts from damage during injection, including selecting appropriate materials and techniques to prevent deformation or displacement.

Proper venting prevents air and gases from being trapped, which can cause defects. Cooling systems must ensure uniform temperature distribution to avoid issues such as thermal gradients or uneven shrinkage, which can impact part quality.

Rigorous quality control measures ensure that overmolded parts meet the required specifications and performance standards. Techniques such as in-process inspection, statistical process control (SPC), and non-destructive testing (NDT) can be employed to detect defects and verify product integrity.
